Laboratory Equipment and Safety Worksheet
8 questions on hazard pictograms, spotting unsafe practice, choosing glassware, percent uncertainty and burette readings. Answer key included.

- Type
- Worksheet
- Level
- Beginner
- Format
- PDF, ready to print

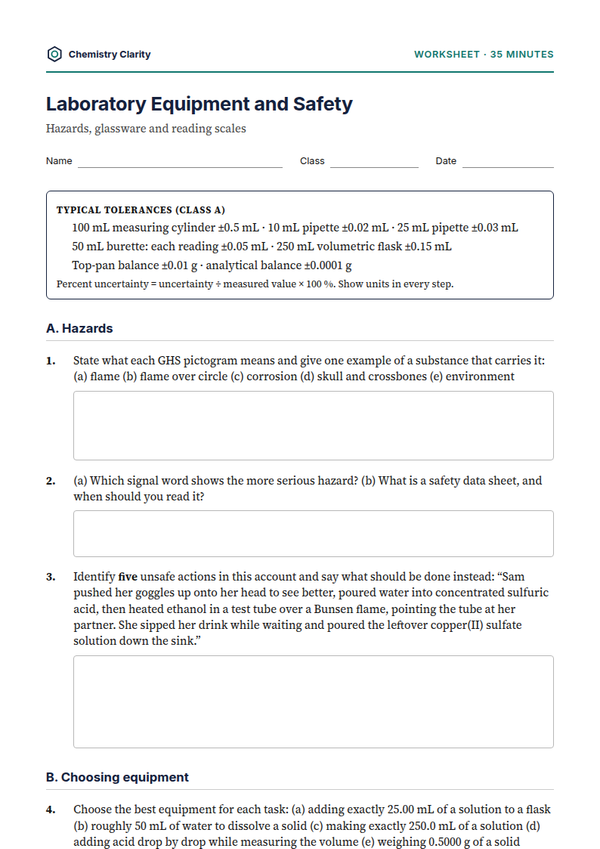

Preview the questions
All the questions on this worksheet (about 35 minutes). Download the PDF to print it with space for working; the free answer key has full worked solutions.
A. Hazards
1.
State what each GHS pictogram means and give one example of a substance that carries it: (a) flame (b) flame over circle (c) corrosion (d) skull and crossbones (e) environment
2.
(a) Which signal word shows the more serious hazard? (b) What is a safety data sheet, and when should you read it?
3.
Identify five unsafe actions in this account and say what should be done instead: “Sam pushed her goggles up onto her head to see better, poured water into concentrated sulfuric acid, then heated ethanol in a test tube over a Bunsen flame, pointing the tube at her partner. She sipped her drink while waiting and poured the leftover copper(II) sulfate solution down the sink.”
B. Choosing equipment
4.
Choose the best equipment for each task: (a) adding exactly 25.00 mL of a solution to a flask (b) roughly 50 mL of water to dissolve a solid (c) making exactly 250.0 mL of a solution (d) adding acid drop by drop while measuring the volume (e) weighing 0.5000 g of a solid
5.
Calculate the percent uncertainty of: (a) 0.50 g on a top-pan balance and 0.5000 g on an analytical balance (b) 10.0 mL measured with a 100 mL measuring cylinder and 10.00 mL delivered by a 10 mL pipette. What do your answers show?
C. Burette readings
6.
A student records these titrations. Rough: 0.00 mL → 24.10 mL. Run 1: 1.20 mL → 24.70 mL. Run 2: 0.40 mL → 23.85 mL. Run 3: 0.05 mL → 23.55 mL. (a) Calculate each titre. (b) Calculate the mean and standard deviation of runs 1–3 and report the result.
7.
Explain why you read the bottom of the meniscus with your eye level with it, and name the error caused by reading from above.
D. Challenge
8.
Each burette reading is uncertain by ±0.05 mL, and a titre is the difference of two readings. (a) Calculate the percent uncertainty of a titre of 23.50 mL. (b) Suggest one way to reduce the percent uncertainty of the titre.
