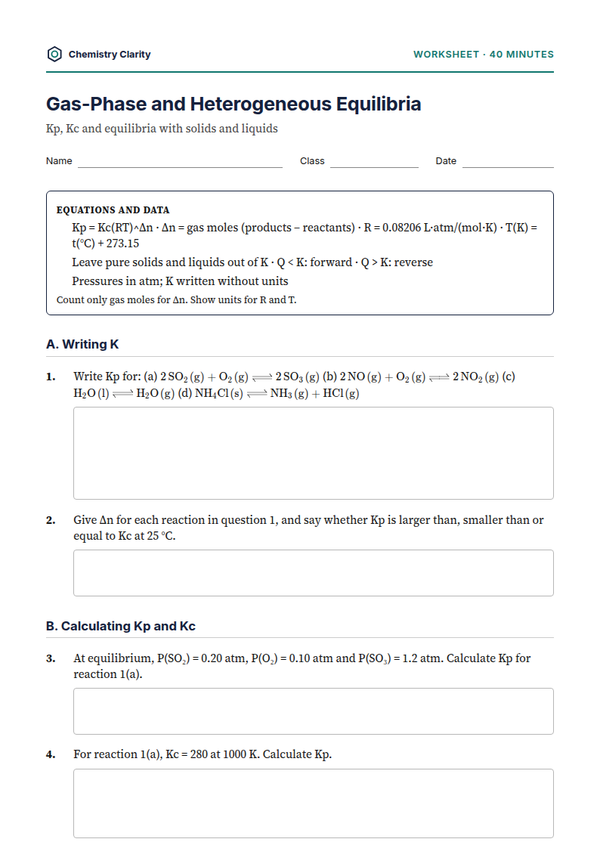

Preview of the first page of Gas-Phase and Heterogeneous Equilibria Worksheet
Type
Worksheet
Level
Intermediate
Format
PDF, ready to print

Preview the questions

All the questions on this worksheet (about 40 minutes). Download the PDF to print it with space for working; the free answer key has full worked solutions.

A. Writing K

1.
Write Kp for: (a) 2 SOX2(g)+OX2(g)⇌2 SOX3(g)\ce{2SO2(g) + O2(g) <=> 2SO3(g)} (b) 2 NO(g)+OX2(g)⇌2 NOX2(g)\ce{2NO(g) + O2(g) <=> 2NO2(g)} (c) HX2O(l)⇌HX2O(g)\ce{H2O(l) <=> H2O(g)} (d) NHX4Cl(s)⇌NHX3(g)+HCl(g)\ce{NH4Cl(s) <=> NH3(g) + HCl(g)}
2.
Give Δn for each reaction in question 1, and say whether Kp is larger than, smaller than or equal to Kc at 25 °C.

B. Calculating Kp and Kc

3.
At equilibrium, P(SO₂) = 0.20 atm, P(O₂) = 0.10 atm and P(SO₃) = 1.2 atm. Calculate Kp for reaction 1(a).
4.
For reaction 1(a), Kc = 280 at 1000 K. Calculate Kp.
5.
For NX2OX4(g)⇌2 NOX2(g)\ce{N2O4(g) <=> 2NO2(g)}, Kp = 0.15 at 25 °C. Calculate Kc.

C. Q and ICE tables

6.
For HX2(g)+IX2(g)⇌2 HI(g)\ce{H2(g) + I2(g) <=> 2HI(g)}, Kp = 50 at a certain temperature. A mixture contains H₂ and I₂ at 0.10 atm each and HI at 0.50 atm. Calculate Q and predict the direction of change.
7.
Pure N₂O₄ at 1.00 atm is allowed to reach equilibrium at 25 °C (Kp = 0.15). Calculate the equilibrium partial pressures of N₂O₄ and NO₂.

D. Challenge

8.
Solid CaCO₃ is heated in a sealed container until CaCOX3(s)⇌CaO(s)+COX2(g)\ce{CaCO3(s) <=> CaO(s) + CO2(g)} reaches equilibrium. Explain what happens to the pressure of CO₂ if (a) more CaCO₃ is added (b) some CO₂ is pumped out (at constant temperature).
