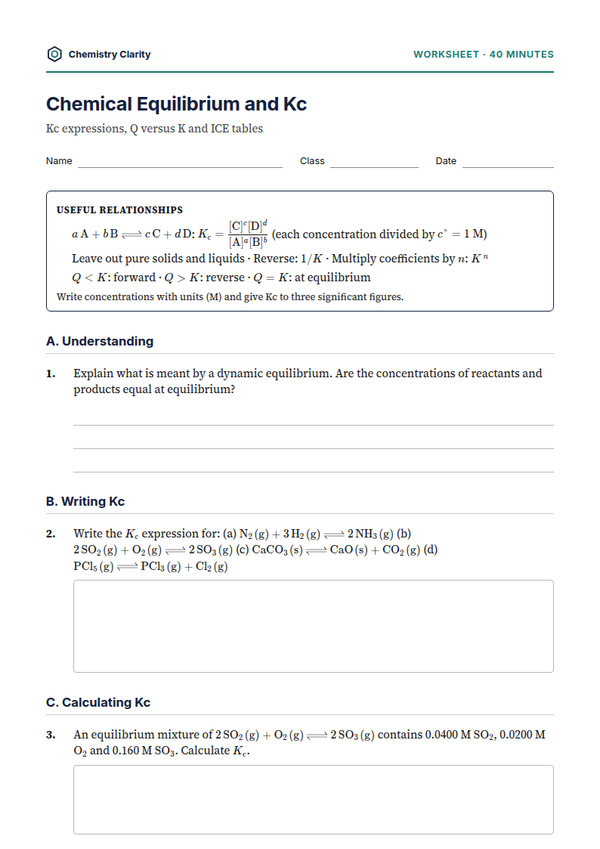

Preview of the first page of Chemical Equilibrium Worksheet
Type
Worksheet
Level
Intermediate
Format
PDF, ready to print

Preview the questions

All the questions on this worksheet (about 40 minutes). Download the PDF to print it with space for working; the free answer key has full worked solutions.

A. Understanding

1.
Explain what is meant by a dynamic equilibrium. Are the concentrations of reactants and products equal at equilibrium?

B. Writing Kc

2.
Write the KcK_\text{c} expression for: (a) NX2(g)+3 HX2(g)⇌2 NHX3(g)\ce{N2(g) + 3H2(g) <=> 2NH3(g)} (b) 2 SOX2(g)+OX2(g)⇌2 SOX3(g)\ce{2SO2(g) + O2(g) <=> 2SO3(g)} (c) CaCOX3(s)⇌CaO(s)+COX2(g)\ce{CaCO3(s) <=> CaO(s) + CO2(g)} (d) PClX5(g)⇌PClX3(g)+ClX2(g)\ce{PCl5(g) <=> PCl3(g) + Cl2(g)}

C. Calculating Kc

3.
An equilibrium mixture of 2 SOX2(g)+OX2(g)⇌2 SOX3(g)\ce{2SO2(g) + O2(g) <=> 2SO3(g)} contains 0.0400 M SOX2\ce{SO2}, 0.0200 M OX2\ce{O2} and 0.160 M SOX3\ce{SO3}. Calculate KcK_\text{c}.
4.
Using your answer to question 3, find KcK_\text{c} for (a) 2 SOX3⇌2 SOX2+OX2\ce{2SO3 <=> 2SO2 + O2} and (b) SOX2+12 OX2⇌SOX3\ce{SO2 + 1/2 O2 <=> SO3}.

D. Q versus K

5.
For NX2OX4(g)⇌2 NOX2(g)\ce{N2O4(g) <=> 2NO2(g)}, Kc=0.0200K_\text{c} = 0.0200. A mixture contains 0.100 M NX2OX4\ce{N2O4} and 0.0200 M NOX2\ce{NO2}. Calculate Q and predict the direction of change.

E. ICE tables

6.
0.200 M HX2\ce{H2} and 0.200 M IX2\ce{I2} are mixed: HX2(g)+IX2(g)⇌2 HI(g)\ce{H2(g) + I2(g) <=> 2HI(g)}, Kc=49.0K_\text{c} = 49.0. Find the equilibrium concentrations of all three gases.
7.
0.500 M PClX5\ce{PCl5} is placed in a container: PClX5(g)⇌PClX3(g)+ClX2(g)\ce{PCl5(g) <=> PCl3(g) + Cl2(g)}. At equilibrium, [ClX2]=0.100[\ce{Cl2}] = 0.100 M. Calculate KcK_\text{c}.

F. Challenge

8.
One reaction has K=1×1010K = 1 \times 10^{10} and another K=1×10−10K = 1 \times 10^{-10}. Describe the equilibrium mixture in each case.
9.
Using KcK_\text{c} from question 7, find the equilibrium concentrations when 0.300 M PClX5\ce{PCl5} is placed in a container. (You will need to solve a quadratic equation.)
